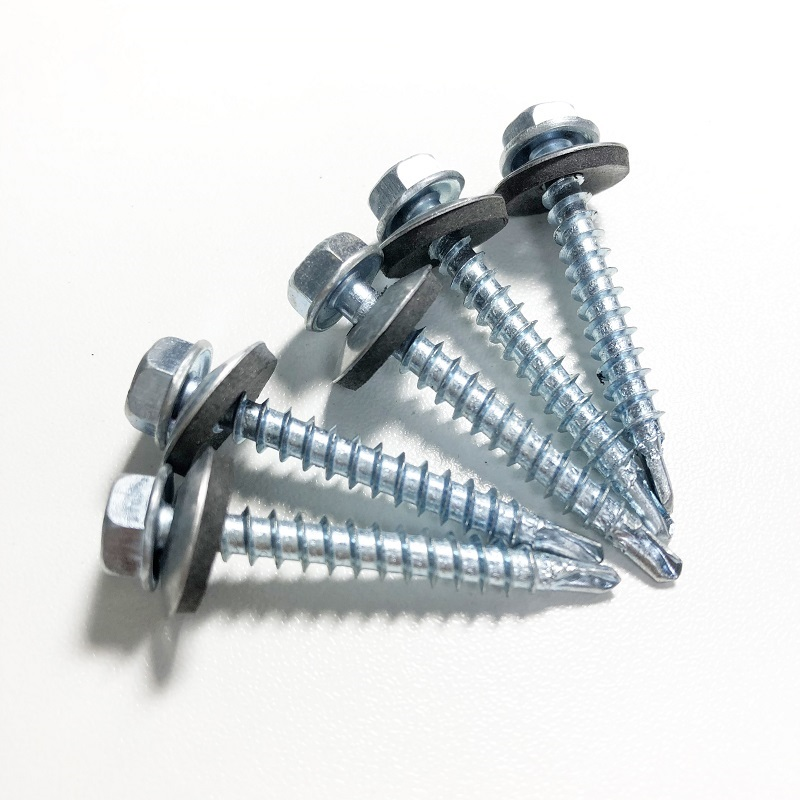

How to install roofing screws to ensure water - tightness?

Understanding the Role of Roofing Screws in Weatherproofing

How Roofing Screws Contribute to Overall Roof Integrity

Metal roofing panels need proper anchoring to their underlying structure, which is where those little but important roofing screws come into play. These fasteners help spread out the stress across the surface while fighting against both wind uplift forces and the expansion/contraction caused by temperature changes. When installed correctly, they keep everything lined up even when subjected to all sorts of dynamic forces, so no gaps form that could let water sneak through. According to research from the Building Envelope Research Council back in 2023, about two thirds of all weather related roof problems actually stem from panels that weren't secured properly. For this reason, many contractors now specify screws with hardened steel cores since these can withstand shear forces better during structural stress events, ultimately helping maintain that critical waterproof seal we all depend on for our buildings.

The Science Behind Sealed Screw Shanks and Water Resistance

Screws with sealed shanks come equipped with neoprene washers that compress when tightened to certain torque levels, creating a watertight barrier. The result is basically a hydraulic type seal forming around every fastener point. Tests show these special washers cut down on water getting through by about 82 percent when compared against regular old washers according to Roofing Materials Quarterly from last year. For buildings near the coast where salt air eats away at metal components, adding epoxy coatings or going for zinc aluminum mixtures really helps fight off rust problems over time. These protective layers make all the difference in harsh environments where ordinary hardware would just corrode away much faster.

Why Proper Screw Selection Impacts Long-Term Leak Prevention

Selecting the right roofing screw involves balancing three key factors:

• Coating durability: Epoxy-coated screws last 2.3× longer than zinc-plated ones in high-humidity environments
• Washer material: UV-stable EPDM rubber remains flexible between -40°F and 240°F
• Head design: Hex-flange heads evenly distribute force, minimizing washer overcompression

Screws meeting AS 3566-2002 Class 3 standards show no corrosion failures in 10-year accelerated weathering trials, confirming their effectiveness in long-term leak prevention.

Correct Placement: Fastening into Ribs vs. Flats of Metal Panels

Why Rib-Fastened Systems Outperform Flat-Fastened Ones in Shedding Water

Rib-fastened systems use the natural drainage channels of panel ribs to direct runoff away from fastener points. A 2023 Metal Construction Association study found rib placement reduces leakage incidents by 62% compared to flat-fastened alternatives. Flat installations create micro-pools that accelerate neoprene washer degradation, compromising long-term performance.

Structural Implications of Fastening Into Unsupported Panel Flats

Driving screws into unsupported flats increases deflection risks due to lack of underlying support. According to the Structural Engineering Institute (2022), flat-fastened panels experience 40% more cyclic stress at fastener points, leading to premature seal failure. This configuration also allows excessive movement during thermal expansion, weakening the compression seal over time.

Manufacturer Data on Optimal Fastener Locations Per Panel Type

According to an industry report from 2023, around three quarters of metal roofing companies actually recommend placing fasteners along ribs when installing panels. For standing seam roofs specifically, putting screws on the side of the ribs helps maintain those hidden clips that hold everything together properly. Corrugated panels tend to be different though most installers will space out fasteners roughly every 3 feet along the ribs to handle strong winds better. It's really important to check what the manufacturer says for each specific panel type because the height difference between half inch and one and a half inch ribs makes a big difference in how tight the screws should be and whether they'll seal correctly against leaks.

Mastering Proper Fastening Technique to Preserve Seals

Step-by-Step Guide to Correct Screw Driving Angles and Pressure

Align roofing screws perpendicular to the surface—even a 5° deviation increases leak risk by 40% (Roofing Materials Journal 2023). Apply steady pressure to seat the neoprene washer flush without piercing it. For trapezoidal ribs, begin at the crest and drill pilot holes 10% narrower than the screw shank to enhance compression sealing.

Using Torque-Controlled Drivers to Avoid Human Error

Torque-controlled drivers set to 25–30 in-lbs eliminate variability in fastening pressure. These tools disengage automatically at optimal compression, preventing overdriving. Manufacturers report that torque-regulated installations reduce weather-related failures by 72% compared to manual methods.

The Goldilocks Principle: Finding Ideal Compression for Neoprene Washers

Target one-third compression of the washer thickness—sufficient to form a watertight seal without exceeding the elastomer’s 300% stretch capacity. Properly seated screws exhibit:

• Full contact between washer and metal, with a uniform “doughnut” imprint
• No gap between screw head and panel
• No extrusion of washer material beyond the collar

Visual and Tactile Signs of Overtightened or Undertightened Roofing Screws

Thermal imaging reveals temperature differences exceeding 15°F along improperly compressed fastener lines, accelerating seal degradation.

Ensuring Alignment and Flush Installation for Long-Term Performance

Why Crooked Screws Break Seals and Warp Surrounding Metal

Misaligned screws generate uneven pressure that splits neoprene washers and deforms surrounding metal. Angles exceeding 5° from perpendicular distort the sealant collar and substrate, making angular installation errors a leading cause of early leaks. Studies indicate 68% of premature failures in standing seam roofs stem from misalignment.

Techniques for Maintaining Perpendicular Alignment During Installation

Laser-guided drivers reduce angular deviation by 70% compared to manual methods. Best practices include:

• Using self-centering drill bits with depth stops
• Applying downward pressure before activating the driver
• Checking alignment with a digital angle finder every 10–15 fasteners
  Field tests show these techniques improve seal integrity while increasing installation speed by 40%.

Impact of Misaligned Screws on Thermal Expansion Stress

Crooked fasteners restrict natural panel movement during temperature changes. As metal expands:

1. Off-angle screw shafts bend under lateral stress
2. Washers lose compression contact due to warping
3. Elongated holes become entry points for water
   This cycle contributes to 42% of weatherproofing failures in metal roofs within five years, according to durability studies on thermal dynamics.

Following Manufacturer Guidelines to Maintain Warranty and Performance

How Deviating from Specs Voids Warranties Despite Correct Materials

Warranty problems often come up even when people use the right screws. If builders don't follow those torque specs or spacing requirements, they're basically voiding their warranty without realizing it. According to research from the Ponemon Institute in 2023, about two thirds of all warranty claim denials happened because installers got the fastener depth wrong or spaced them improperly. The fine print in most warranty agreements actually specifies that contractors must stick to those manufacturer charts showing where screws should go, along with proper rib attachment techniques. When these rules get bent or broken, something changes in how weight gets distributed across the structure, which can lead to leaks down the road since the watertight seal becomes compromised.

Comparative Analysis of Screw Placement Rules Across Panel Types

Manufacturers tailor screw placement based on panel thickness and structural needs:

Ignoring these specifications raises the risk of buckling and seal failure during thermal cycles.

Trend: QR-Coded Installation Guides at Job Sites

Contractors now scan QR codes on screw packaging to access real-time installation videos and torque specs. This practice reduced rework rates by 38% in 2023 by ensuring crews follow updated manufacturer guidelines. Embedded digital checklists help maintain consistency and warranty compliance across multi-crew projects.

FAQ Section

Why are roofing screws important for weatherproofing?

Roofing screws play a critical role in weatherproofing by securely fastening metal panels to the underlying structure, preventing gaps that could allow water infiltration.

What role do neoprene washers play in roofing screws?

Neoprene washers compress to create a watertight seal around fasteners, significantly reducing water penetration compared to traditional washers.

How does proper screw placement affect roof integrity?

Correct screw placement, particularly along panel ribs, ensures effective water drainage and minimizes the risk of water pooling, which can degrade seals.
