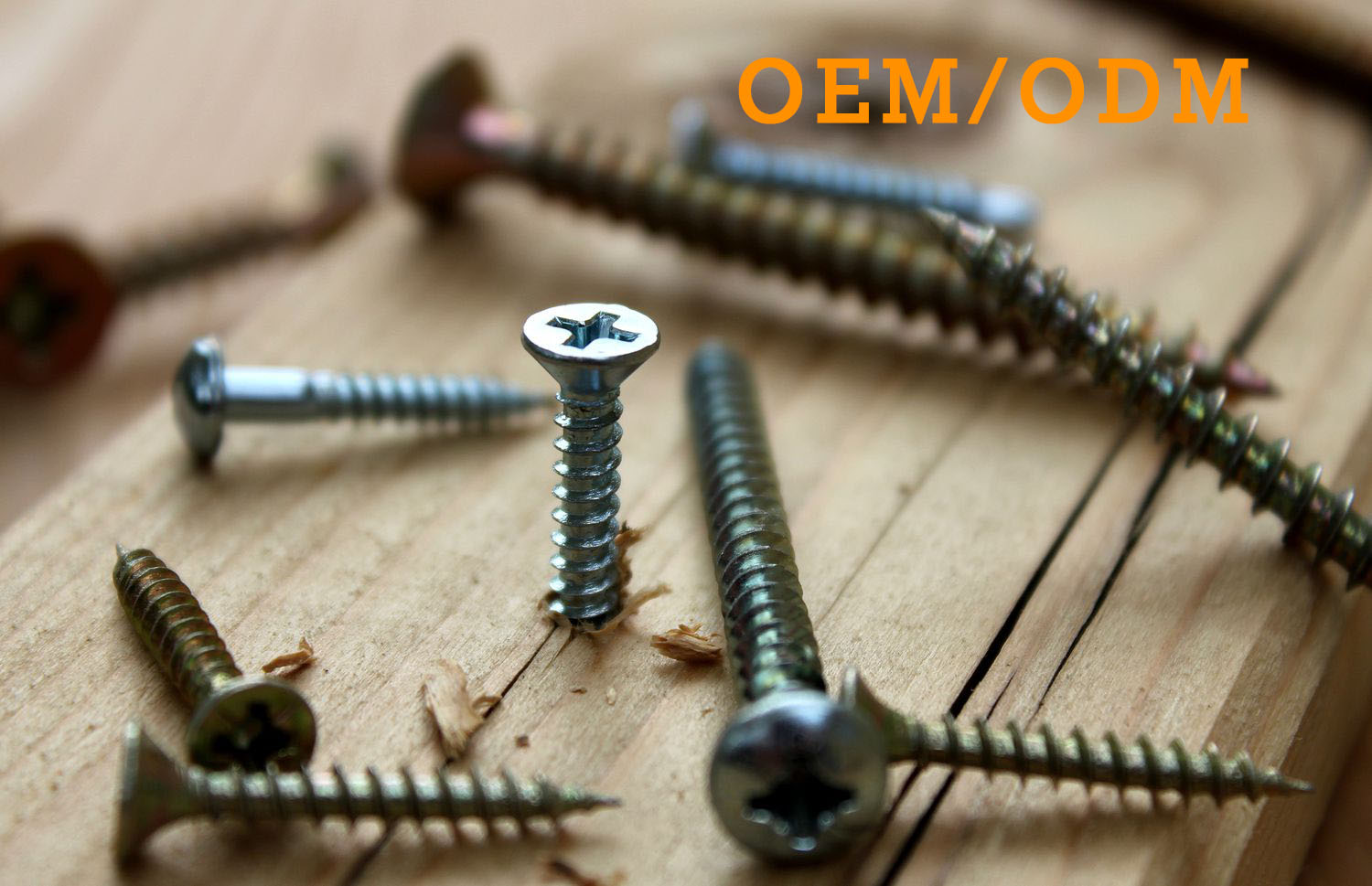

How to choose high - quality wood screws?

Material and Corrosion Resistance: Building Durability from the Core

Steel, Stainless Steel, and Coated Variants: Strength and Longevity Compared

The lifespan of wood screws really starts with picking the right materials. Carbon steel is strong enough for most structural jobs but needs some kind of coating to stop it from rusting away. Stainless steel options like grades 304 and 316 work great in damp areas or near the coast because they naturally resist corrosion thanks to chromium content. When extra protection matters, manufacturers often apply coatings such as zinc plating or epoxy resins which block moisture effectively. Coastal builders tend to favor ceramic coatings specifically since they stand up better against salt air than other options do over time.

Corrosion Resistance in Indoor vs. Outdoor Environments

Wood screws used indoors generally don't corrode much as long as there are no water leaks or constant dampness around them. Things get completely different when these fasteners go outside though. Outdoor hardware has to deal with all sorts of harsh stuff throughout the year including rainwater, sunlight damage, and those road salts people spread during winter months. Stainless steel options hold up pretty well even when wet most of the time. But for regular carbon steel with coatings, it's another story entirely. If the protective layer gets scratched or worn away somehow, then the actual metal underneath starts to rust right away. That's why many contractors prefer stainless for exterior projects where weather is always a factor.

Evaluating Coatings: Zinc, Epoxy, and Ceramic for Enhanced Protection

Zinc plating tends to be pretty affordable and gives what's called sacrificial protection, which means it protects the underlying metal even when damaged. That makes zinc plating work well for things kept inside buildings or maybe outside where they're protected from harsh weather. Epoxy coatings are great at resisting chemicals in factories and workshops, but there's a catch. They need really careful application because if done wrong, they just crack and fail completely. For places where things get rubbed down constantly or exposed to saltwater, ceramic based coatings actually perform better than most other types available today. These coatings hold up much longer in tough conditions even though they do cost more upfront. Many manufacturers find this worth the extra expense for critical components that must last through rough handling or corrosive environments.

Size, Length, and Gauge: Matching Screw Dimensions to Load and Application

Understanding Screw Gauge (Diameter) and Its Impact on Load Capacity

Screw gauge directly influences load capacity: a 10 screw supports 40% more weight than a 8 in comparable applications (Toolup 2025). Thicker shafts better distribute shear forces, enhancing joint stability. However, oversized gauges increase splitting risks in softwoods like pine or cedar. Best practices include:

• Using 6–8 screws for trim and light framing
• Selecting 10–12 for deck posts or structural beams
• Drilling pilot holes at 75% of screw diameter to prevent splitting

Optimal Screw Length and Penetration Depth for Maximum Holding Power

The 2 to 1 penetration rule is basically about getting good hold when driving screws. The idea is that screws need to go at least twice as deep into whatever they're being screwed into compared to how thick the material on top is. Take for instance attaching 3/4 inch plywood to a standard 2x4 board. Most folks find that a 2 and a half inch long screw works best because it grabs enough wood without sticking out the other side. Some recent research from the world of woodworking back in 2024 showed something interesting too. They discovered that those little 1 inch screws tend to give way around 63 percent quicker than their bigger 1 and a half inch counterparts when building cabinets. That really drives home why choosing the right screw length matters so much for lasting results.

Case Study: Structural Failure Due to Incorrect Screw Sizing

In early 2023, a balcony collapsed in downtown Seattle because the contractors used undersized #8 screws that couldn't handle the weight. The building had been subjected to 290 pounds per square foot of pressure at the time of failure, which was actually 37 percent less than what safety standards require. Looking into why this happened showed that the construction team completely overlooked an important industry report from several years back that specifically recommended using stronger 10 screws for these kinds of cantilevered balconies. What this teaches us is pretty straightforward but often forgotten in practice: good engineering requires proper calculations based on actual weight loads both living and dead weights, adjustments for different materials, and always applying those safety factors we talk about in textbooks. Most engineers know they should aim for at least 2.5 times the expected load when designing structures, not just meeting minimum requirements but building something that can withstand unexpected stresses too.

Thread and Tip Design: Enhancing Grip and Reducing Installation Effort

Coarse vs. Fine Threads: Choosing Based on Wood Type and Density

When working with softwoods like pine or cedar, coarse threaded screws tend to work better because their wider spacing actually grabs onto those less dense wood fibers more effectively. For harder woods such as oak or maple, fine threads around the 40 to 50 TPI range are generally preferred. These finer threads bite into the wood more tightly, which helps prevent splitting issues that can occur when driving screws through denser materials. Some studies indicate that coarse threads offer roughly 18 percent more resistance when pulled out from softwood applications than their fine threaded counterparts do. Woodworkers often notice this difference in practice, especially when dealing with projects where screw holding power is critical.

*TPI = threads per inch

Fully vs. Partially Threaded Screws and Their Structural Implications

Screws that are only partially threaded, about 30 to 40 percent of the shaft being smooth, really pack the clamping power at the end where it matters most. This makes them great when someone wants to fasten two pieces together tightly without worrying about the screw pulling through. On the flip side, fully threaded screws spread out the pressure all along their length, which helps them stand up better against sideways forces. Most framing crews grab partial threads for those shear wall applications because they just work better there. Cabinet builders tend to go the other way though, reaching for fully threaded options when working with adjustable joints or stuff like particle board since those materials need that extra grip throughout the whole connection point.

Fluted Tips and Serrated Threads for Clean Entry and Reduced Splitting

The fluted tips work kind of like self cleaning augers, sweeping away debris as they go into place which stops things from getting stuck. The serrated threads slice right through those wood fibers instead of just ripping them apart, which actually cuts down on how much force is needed to install them somewhere around 25%. And when folks make sure they drill the right size pilot hole first, all these design elements together can really cut down on splitting problems especially in woods that tend to crack easily like cherry wood. Some tests back this up too showing about a 44% reduction in splits according to data from the Wood Fastener Institute in their 2022 report.

Drive and Head Types: Ensuring Proper Fit and Performance

Drive Types Compared: Phillips, Pozi, Square, and Star (Torx)

Most folks still grab Phillips screws for their weekend projects around the house, even though these drivers tend to slip out of the head too easily. That slipping problem actually accounts for about one quarter of all DIY screw failures according to recent fastener studies from 2024. The PoziDrive system fixes this issue pretty well, transferring roughly 40 percent more torque thanks to those clever cross shapes inside the driver slot. Woodworkers who need precision often reach for Square or Robertson drives because they just seem to find center on their own when tightening down joints. And then there's Torx or Star drives which professionals swear by now. Their unique six-point shape cuts down on slippage dramatically, especially important when working with tough hardwood materials. Testing done last year by Wilson Garner showed these drivers reduced slippage problems by as much as 80% compared to older styles.

Head Styles: Flat, Pan, Round, and Trim – Matching to Application Needs

Head style affects both performance and aesthetics. Key recommendations based on structural data:

Pan heads reduced fastener failure by 33% in outdoor timber projects due to improved load distribution, per a Metal Construction News (2023) study.

Why Square and Star Drives Are Gaining Popularity in Professional Woodworking

Square and Torx drives now represent 72% of industrial wood screw sales, driven by:

1. High-Torque Reliability: Essentra Components (2024) found Torx drives withstand 2.6– more rotational force than Phillips in engineered lumber.
2. Tool Longevity: Cabinetmakers report drill bits last 60% longer with Torx due to reduced cam-out wear.

These systems eliminate 90% of stripped screw incidents seen with traditional drives, making them essential for precision and structural applications.

Wood Compatibility and Installation Best Practices

Choosing the Right Screw for Hardwood, Softwood, and Engineered Boards

Getting the right screw for different types of wood makes all the difference when working on projects. For hardwoods like oak, go with those sharp, rough textured stainless steel screws that can handle lots of twisting force without getting stripped out during installation. When dealing with softer woods such as pine, fine thread screws work better because they resist rust and help prevent the wood from cracking around the hole. And don't forget about engineered materials like plywood and MDF boards. These composite products actually respond well to partially threaded screws that drill themselves into place. Most DIYers find these self-drilling varieties grip better in layered materials and leave cleaner holes without tearing up the surface as much as regular screws tend to do.

Preventing Wood Splitting: The Role of Pilot and Clearance Holes

When working with hardwoods, pilot holes really matter because those radial stresses can hit over 3,200 PSI when installing fasteners according to Forest Products Journal research from last year. The general rule is to drill pilot holes around 60 to 70 percent of what the screw's core diameter actually measures. This helps keep things strong without cracking the wood. For end grain situations specifically, creating clearance holes that are just a bit bigger than the actual screw shank makes sense too since it takes pressure off the compressed area. Putting all this together with good quality weather resistant screws gives outdoor projects much better staying power through all those seasons changes we see every year.

FAQ Section

What type of materials are best for wood screws?

Carbon steel, when coated, and stainless steel are optimal choices based on corrosion resistance and strength. For enhanced protection, coatings like zinc, epoxy, or ceramic are recommended depending on the environment.

How important are pilot holes in preventing wood splitting?

Pilot holes are crucial, especially in hardwoods, as they help manage radial stresses during installation, preventing wood from cracking.

What factors should be considered when choosing the size and length of wood screws?

Consider the screw's gauge for load capacity, and ensure it adheres to the 2 to 1 penetration rule for adequate holding power based on the material's thickness.

Why are Torx or Star drives popular in woodworking?

Torx drives offer high-torque reliability and significantly reduce slippage, making them ideal for precision and structural applications.

How do different head styles affect screw performance?

Head styles impact load distribution and aesthetic requirements—for example, flat heads for cabinetry or pan heads for framing for better load-bearing ability.
