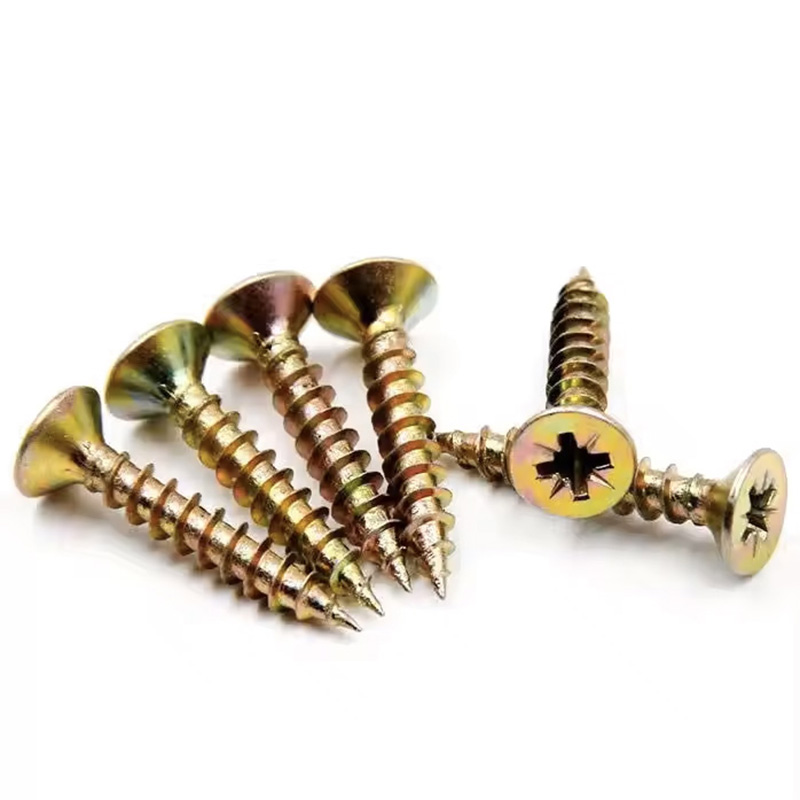

Are there specific torque requirements for chipboard screws?

Understanding Torque and Its Importance in Chipboard Screw Applications

What is torque and why it matters in chipboard screw installation

Torque basically means the twisting force used when tightening screws. When working with chipboard materials, getting the right amount of torque matters a lot. If there's not enough force, the joints stay loose and can come apart from all the shaking around. But go too hard and the screw might actually damage the soft chipboard underneath, weakening everything. Good torque lets the threads grip properly so the fastener holds strong without squishing the material flat. This becomes really critical because chipboard isn't as dense as real wood, making it much easier to mess up during installation.

Typical torque settings for driving screws in particle board applications

For most chipboard screws, the recommended torque range is 2.5–4 Nm, with 8 gauge fasteners typically requiring around 3.2 Nm. Research shows that at 3 Nm, withdrawal resistance increases by 18% over installations at 2 Nm (Aziz et al., 2014). These values assume standard medium-density chipboard with 12–15% moisture content.

Mechanical performance of chipboard screws under varying torque loads

Exceeding optimal torque by 25% reduces pull-out strength by 32%. At 150% of recommended torque, head stripping occurs four times more frequently in chipboard than in plywood. To mitigate this, manufacturers use dual-lead thread designs that lower insertion force by 15–20%, improving torque efficiency and reducing failure risks during installation.

Industry standards for torque testing and performance requirements

According to ASTM F1575-22, chipboard screws need to hold onto around 80% of their tensile strength after being tightened to certain torque specifications. Across Europe, standards like EN 14592 and EN 14566 go even further, asking manufacturers to document two key measurements: maximum assembly torque usually around 4.2 Nm, and stripping torque which averages about 5.8 Nm before the screw fails. These numbers aren't just random figures on paper they actually help engineers pick the right screws for different jobs without risking damage to materials during installation. The specs basically act as a safety net ensuring things stay secure under various loads without unnecessary stress on components.

How Chipboard Screw Design Influences Torque Control

Self-Tapping Features and Thread Design in Chipboard Screws

Chipboard screws come equipped with self tapping points and those special coarse threads that slice right through composite stuff without needing any pilot holes first. What makes them stand out is how they actually cut down on spinning resistance somewhere around 15 to maybe even 20 percent when compared against regular fine threaded screws. This means workers get much better control over tightening force especially important when dealing with fragile materials. And because of their wider thread pattern, these screws really bite into those lightweight fiber boards too. They hold fast without pulling out but still require less muscle power to drive home which saves time during installation projects.

How Screw Geometry Influences Torque During Tightening

Three key geometric factors affect torque behavior:

• Shank diameter: Narrower shafts (3.5–4.0 mm) reduce driving torque by up to 30% compared to standard wood screws
• Thread angle: Steeper 60° angles increase material displacement, raising torque demands by 8–12% under ISO 3506 testing
• Head design: Flat heads with nibbed undersides minimize cam-out by concentrating driver pressure, enhancing torque transfer accuracy

Comparison of Chipboard Screws vs. Wood Screws in Torque Response

Material Composition of Chipboard and Its Effect on Fastener Performance

Chipboard's composition–recycled wood fibers bound with resin–creates variable density zones (0.6–0.8 g/cm³). This inconsistency demands tight torque control within ±10% to avoid localized compression or splitting. Torque above 4.0 Nm raises split risk by 18% in 16mm boards, while settings below 1.8 Nm can reduce joint rigidity by 31%.

Best Practices for Avoiding Overtightening and Material Damage

Installation Best Practices for Chipboard Screws to Optimize Torque

When drilling pilot holes, aim for around 75 to 90 percent of the actual screw shank size to keep wood from splitting apart during installation. For regular 4 to 6 mm screws, most folks find that torque limiting drivers set somewhere between 1.8 and 2.5 Newton meters work best. Instead of just cranking them down all at once, tighten these screws in three separate steps. The gradual compression gives the wood fibers time to adjust without creating too much internal tension inside the material. This method actually makes the fasteners hold better long term when working with engineered wood products.

Risks of Splitting and Overtightening During Chipboard Screw Installation

When screws are overtightened, they actually create around 40% more radial force compared to those tightened correctly. This can easily surpass the standard tensile strength of chipboard, which sits at about 18 MPa on average. What happens next? Surface cracks form and there's hidden damage called delamination happening right where it matters most in structural joints. A good rule for installers is to stop turning when the screw head just touches the surface. Going beyond that point doesn't really make things stronger anyway, but it does dramatically increase chances of splitting the material down the middle. Experience shows most problems come from going just a little too far with torque.

Screw Stripping in Soft Materials: Causes and Prevention

Screws often strip when drilling at too high RPM without proper clutch settings, when old or wrong bits are used like Phillips head instead of Pozidriv, or when putting in those coarse thread screws into weak chipboard materials under about 650 kg per cubic meter density. Tests show that impact drivers equipped with adjustable clutch mechanisms cut down on stripped screws around 90% of the time. When working on tough jobs, going for twin lead thread forming screws makes a real difference. These specialized fasteners boost torque transmission somewhere around 35 to 40%, which means less slippage during installation and stronger joints overall for whatever project needs extra holding power.

Application-Specific Torque Needs for Optimal Performance

Fastener Selection Based on Material Thickness and Load Demands

The amount of torque needed depends on how thick the panels are and what kind of load they need to support. For light duty shelving made from 8 to 12 mm panels, around 1.2 to 1.8 Newton meters works well. This range keeps things secure without stripping threads or cracking the material. When working with heavy duty workbenches constructed from thicker chipboard between 18 and 25 mm, we typically need to apply more force. The recommended range here jumps to about 2.4 to 3 Newton meters to withstand those constant forces and vibrations. According to findings published in the latest Structural Fasteners Report, there's actually quite a difference between screw types for thick materials. Coarse thread screws with straight shanks perform better than their fine threaded counterparts in these situations. They provide roughly 18 percent greater resistance before pulling out under the same tightening force. Something worth considering when building anything that needs to last through regular use.

Torque Control During Screw Tightening in Cabinetry and Shelving

When working with cabinetry, especially those with veneered surfaces that tend to get damaged easily, getting the right amount of torque matters a lot. Adjustable clutch drivers that are set around 65 to 70 percent of their maximum power can cut down on splitting problems by about 41 percent when compared to old fashioned hand tools according to some recent studies from Woodworking Safety Alliance back in 2023. When it comes to attaching shelf brackets, taking things step by step works best. Start at about half torque, then move up to 80 percent before finally going all the way to full torque. This gradual approach helps compress the particle board evenly throughout its layers, which leads to stronger joints that last much longer over time.

Differences in Torque Needs Between Framing, Drywall, and Chipboard Applications

When it comes to fastening, framing screws generally need around 6 to 8 Newton meters of torque for proper connections in structural lumber work. Chipboard screws on the other hand work best with much less force, somewhere between 1.5 and 2.5 Nm because chipboard itself isn't as dense as wood. Drywall screws actually require the smallest amount of torque, typically between 0.6 and 1.0 Nm. This helps prevent damage to the soft gypsum core inside drywall panels, which is quite different from how chipboard reacts to screw pressure. Some actual field tests have demonstrated that chipboard can hold onto about 92% of its gripping strength when tightened to 2.0 Nm. That's pretty impressive compared to medium density fiberboard, which only manages to keep roughly 78% of its holding power under similar loading conditions during testing.

Tools and Techniques for Consistent Torque Management

Using torque-controlled drivers for consistent chipboard screw installation

Torque-controlled drivers reduce installation variability by 37% compared to manual methods, according to 2023 industry research. With adjustable settings (typically 0.5–5 Nm) and real-time feedback, these tools prevent overdriving and material deformation. Advanced models offer preset profiles for different chipboard densities and automatically shut off at target torque.

For high-precision applications like cabinetry, ISO-accredited torque calibration seminars recommend verifying tool accuracy every 500 drive cycles or quarterly. Field data shows calibrated drivers maintain ±3% consistency, versus ±15% in uncalibrated units.

Manual vs. power tool approaches for torque testing for chipboard screws

A 2023 UL study found manual screwdrivers produce 8% greater torque variation than electric drivers in chipboard, though both meet ANSI standards when equipped with torque-limiting clutches. Considerations include:

• Manual tools: Best for small-scale repairs (<20 screws/day), where tactile feedback helps avoid overdriving near fragile edges
• Power tools: Necessary in production settings; models with chipboard-specific modes reduce splitting by 42%

Regular verification using digital torque testers ensures long-term accuracy. Test each tool after 5,000 cycles or any sign of performance drift–especially vital given chipboard’s limited tolerance for rework.

FAQ Section

What is the ideal torque range for chipboard screws?

The recommended torque range for chipboard screws is 2.5 to 4 Nm, with 8 gauge fasteners typically requiring around 3.2 Nm.

Why is torque control important in chipboard applications?

Proper torque control is crucial to prevent overtightening, which can cause damage to the chipboard by splitting or crushing the material, compromising the joint's integrity.

What are the consequences of overtightening chipboard screws?

Overtightening can create excessive radial force leading to surface cracks and hidden delamination, which weakens the structural joints.

How do thread design and screw geometry affect chipboard screw performance?

Screw geometry, such as shank diameter, thread angle, and head design, significantly impacts torque behavior, influencing how effectively the screw can be driven into chipboard without causing damage.

What tools can ensure consistent torque during installation?

Using torque-controlled drivers with adjustable settings and real-time feedback can help maintain consistent torque, preventing overdriving and ensuring proper installation.
